Gas Generator G3516A
US
Metric
Overview

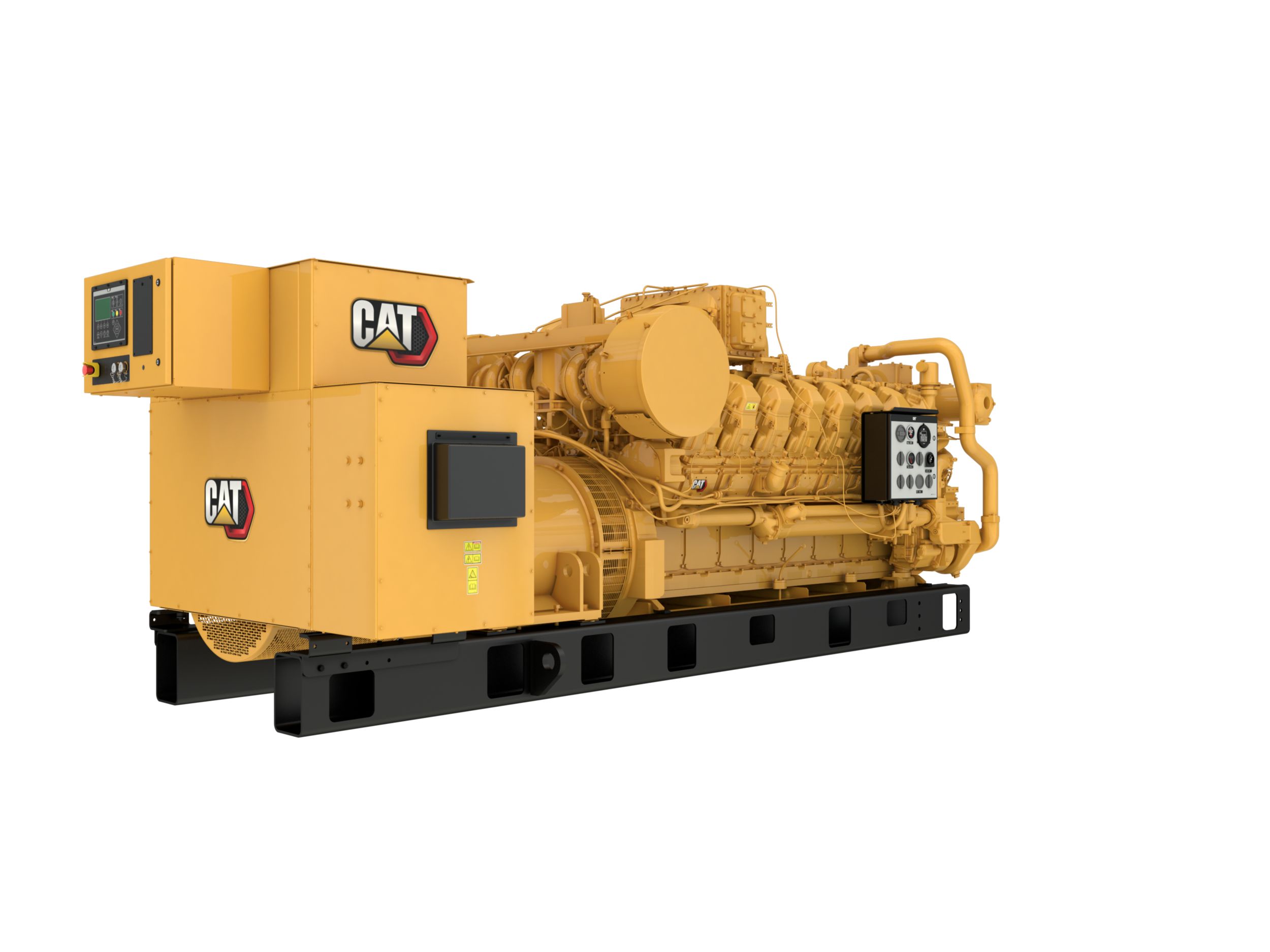

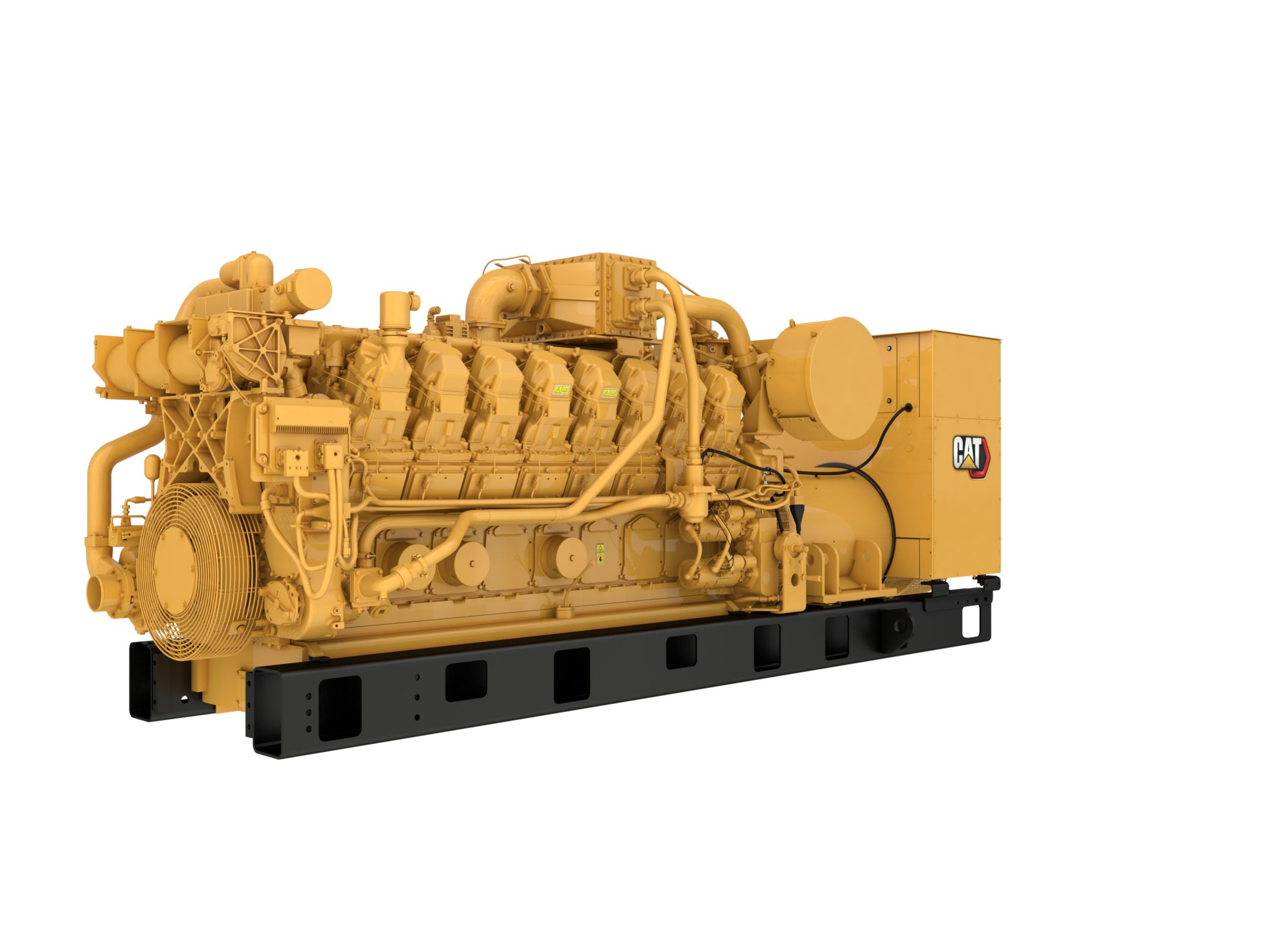

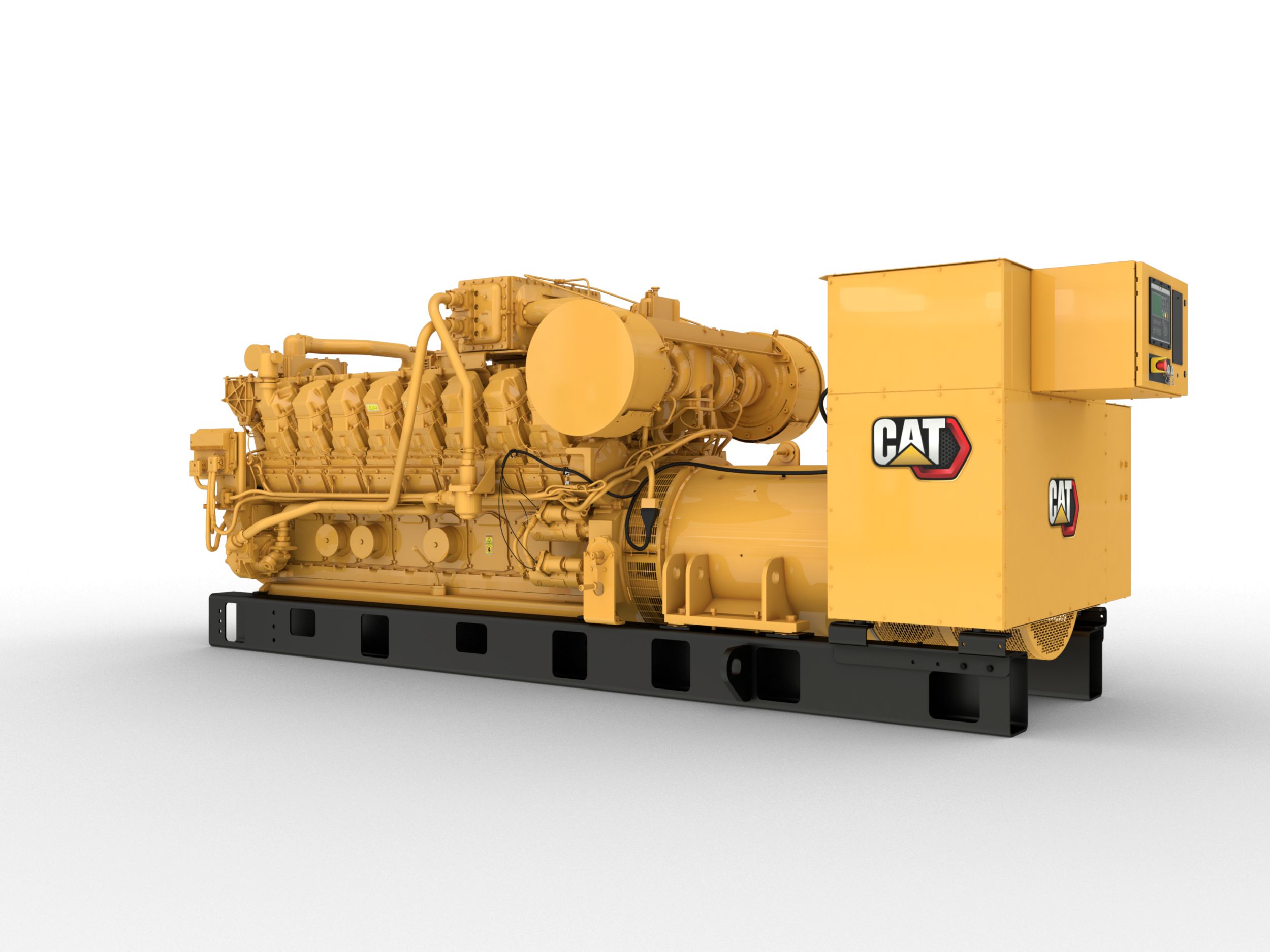

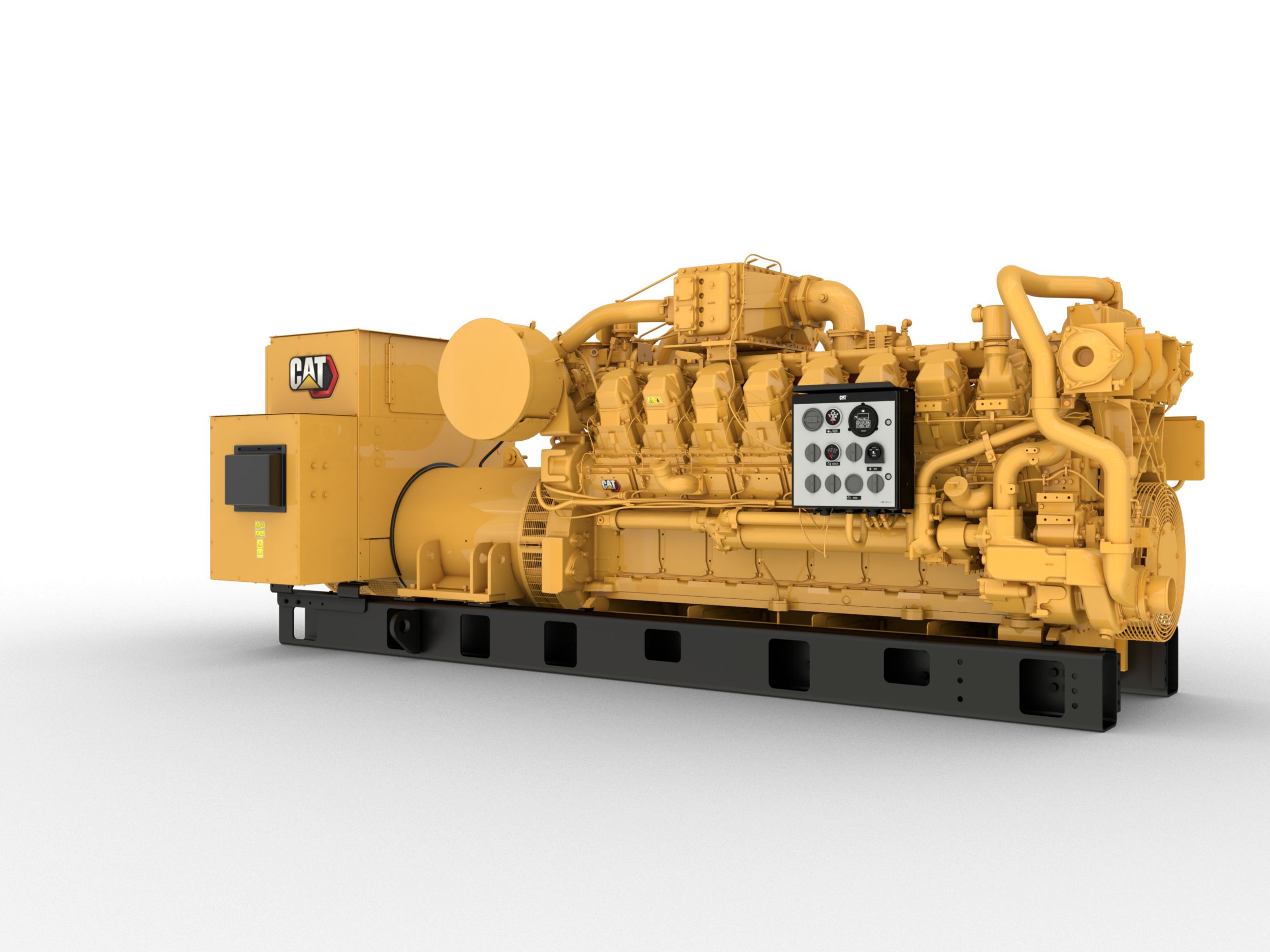

G3516A Gas Generator Set
Generator Set Specifications
Maximum Continuous Rating
1085 ekW
Fuel Type
Natural Gas, Biogas, Coal Gas
Gas Generator Sets Specification
Maximum Electrical Efficiency
36.4%
Maximum Standby Rating
1000 kw
Generator Set Specifications
Frequency
50 / 60 Hz
RPM
1200 / 1500 rpm
Engine Specification
Engine Model
G3516A
Engine Specifications
Bore
6.70 in
170.00 mm
Stroke
7.50 in
190.00 mm
Displacement
4210.00 in³
69.00 l
Aspiration
TA
Generator Set Dimensions
Length
193.00 in
4913.00 mm
Width
68.00 in
1736.00 mm
Height
76.00 in
1940.00 mm
Dry Weight - Genset
27670.00 lb
12549.00 kg
Generator Set Specifications
Maximum Electrical Efficiency
36.50%
Maximum Standby Rating
1000 kw
Engine Specifications
Engine Model
G3516A
Aspiration
TA
Features
Cat G3516A Gas Engine
- Robust high speed block design provides prolonged life and lower owning operationg costs
- Designed for maximum performance on low pressure pipeline natural gas
- Simple open chamber combustion system for reliability and fuel flexibility
- Leading edge technology in ignition system and air/fuel ratio control for lower emission and engine efficiency
- One electronic control module handles all engine functions: ignition, governing, air/fuel ratio control and engine protection
SR5 Generator
- Designed to match performance and output characteristics of Caterpillar gas engines
- Industry leading mechanical and electrical design
- High efficiency
EMCP 4.3 Control Panel
- User-friendly interface and navigation
- Scalable system to meet a wide range of installation requirement
- Expansion modules and site-specific programming for specific customer requirements
Cat Electronic Control System
- Simple user friendly interface and navigation
- Digital monitoring, metering and protection setting
- Fully-featured power metering and protective relaying
- Remote control and monitor capability options
Emissions
- Meets most worldwide emissions requirements down to 0.5 g/bhp-hr NOx level without aftertreatment
Proven System
- Field proven in a wide range of applications worldwide
- Fully prototype tested
- Certified torsional vibration analysis available
Full Range of Attachments
- Wide range of bolt-on system expansion attachments
- Factory designed and tested
- Flexible packaging options for easy and cost effective installation
World Wide Product Support
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
Standard Equipment
- Exhaust
- Dry exhaust manifolds, insulated and shielded
- Generator
- Anti-condensation space heater
- Permanent magnet excitation
- SR4B
- Caterpillar's Digital Voltage Regulator (CDVR) with 3-phase sensing and KVAR/PF control
- Starting/Charging
- 24V starting motors
- General
- Crankshaft vibration damper and guard
- Paint - Caterpillar Yellow except rails are gloss black
- Operation and maintenance manuals
- Parts book
Optional Equipment
- Air Inlet
- Air inlet adapters
- Cooling
- Inlet/Outlet connections
- Exhaust
- Flexible fitting
- Elbow
- Flange
- Muffler and spark-arresting muffler with companion flanges
- Exhaust expander
- Generator
- Low voltage extension box
- Generator air filter
- European bus bar
- Cable access box
- Start/Charging
- Jacket water heater
- Charging alternator
- Battery with cable and rack (shipped loose)
- Battery charger
- Oversized battery
- General
- Engine barring group
- EEC D.O.I and other certifications
- Crankcase explosion relief valve
