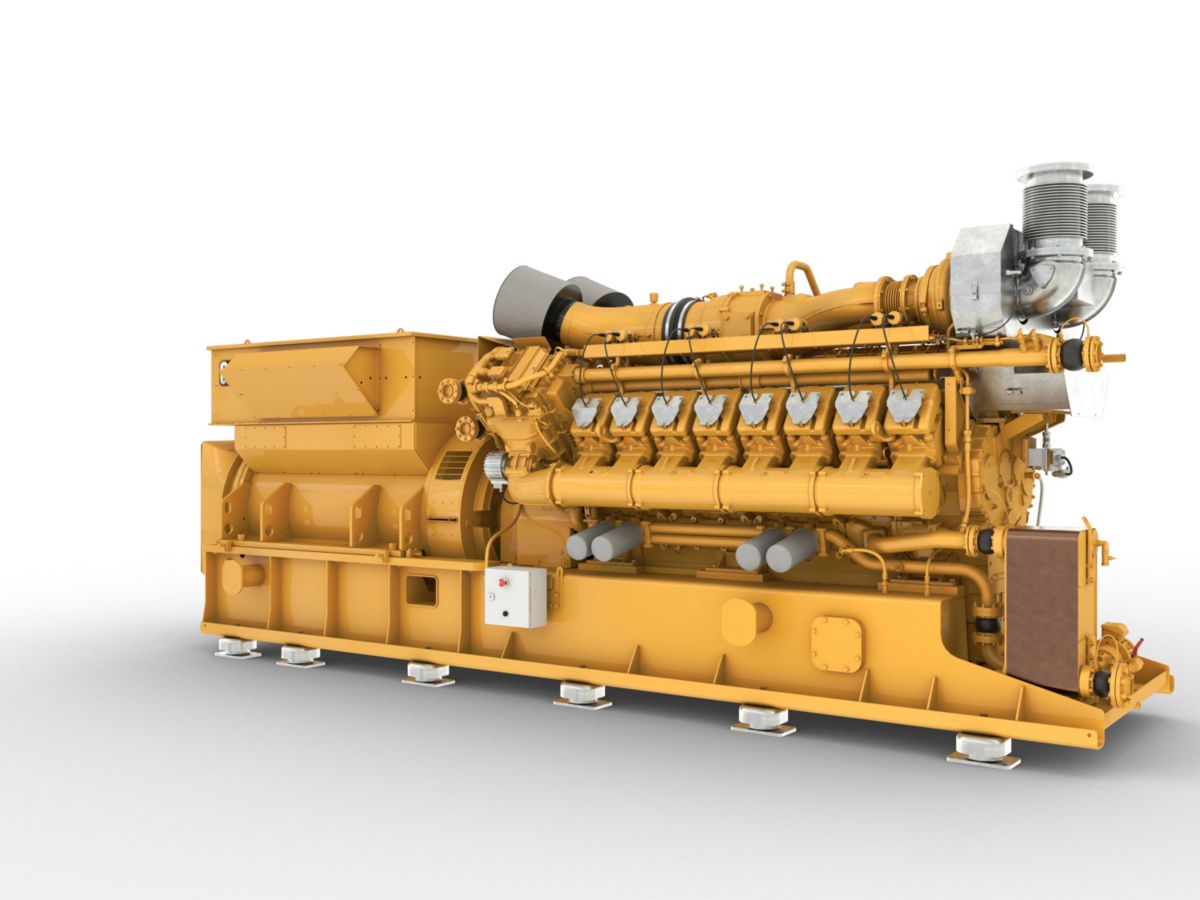

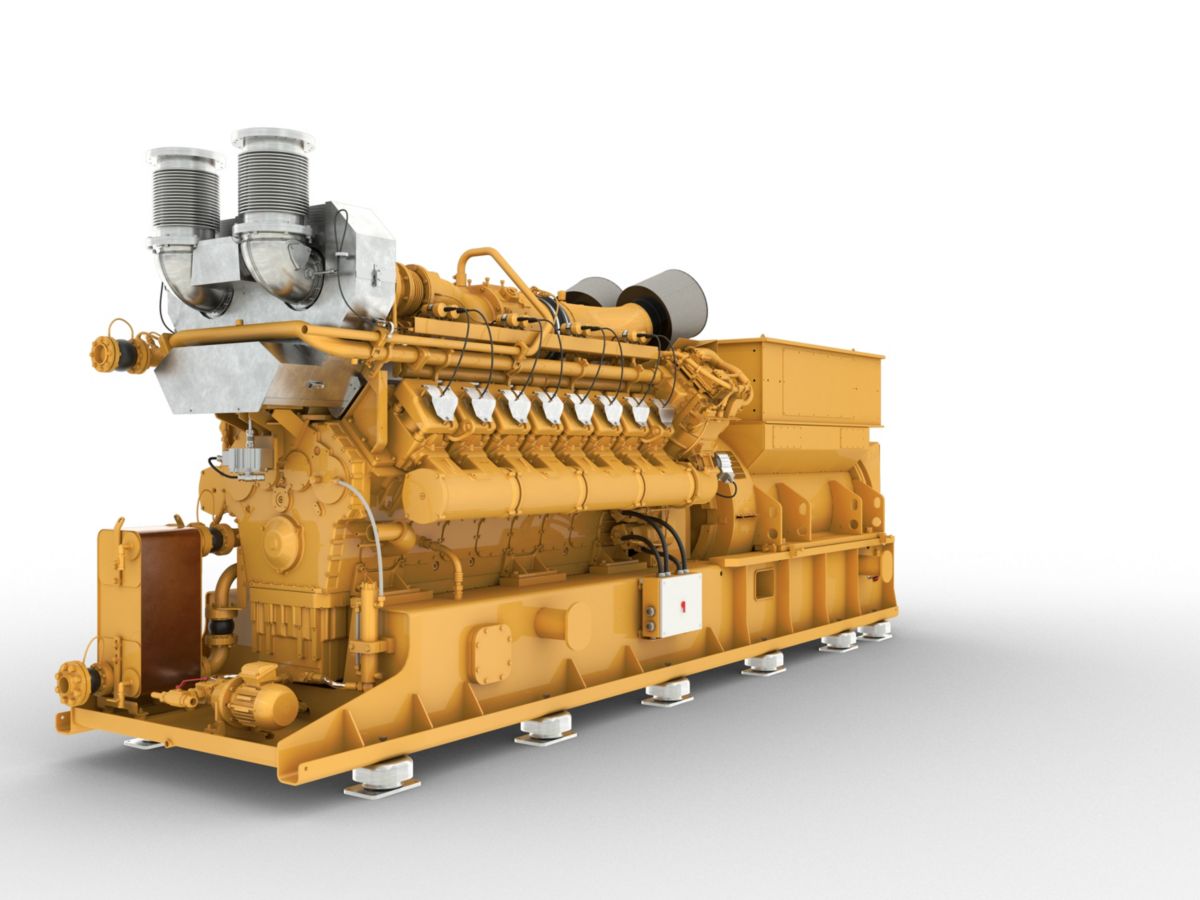

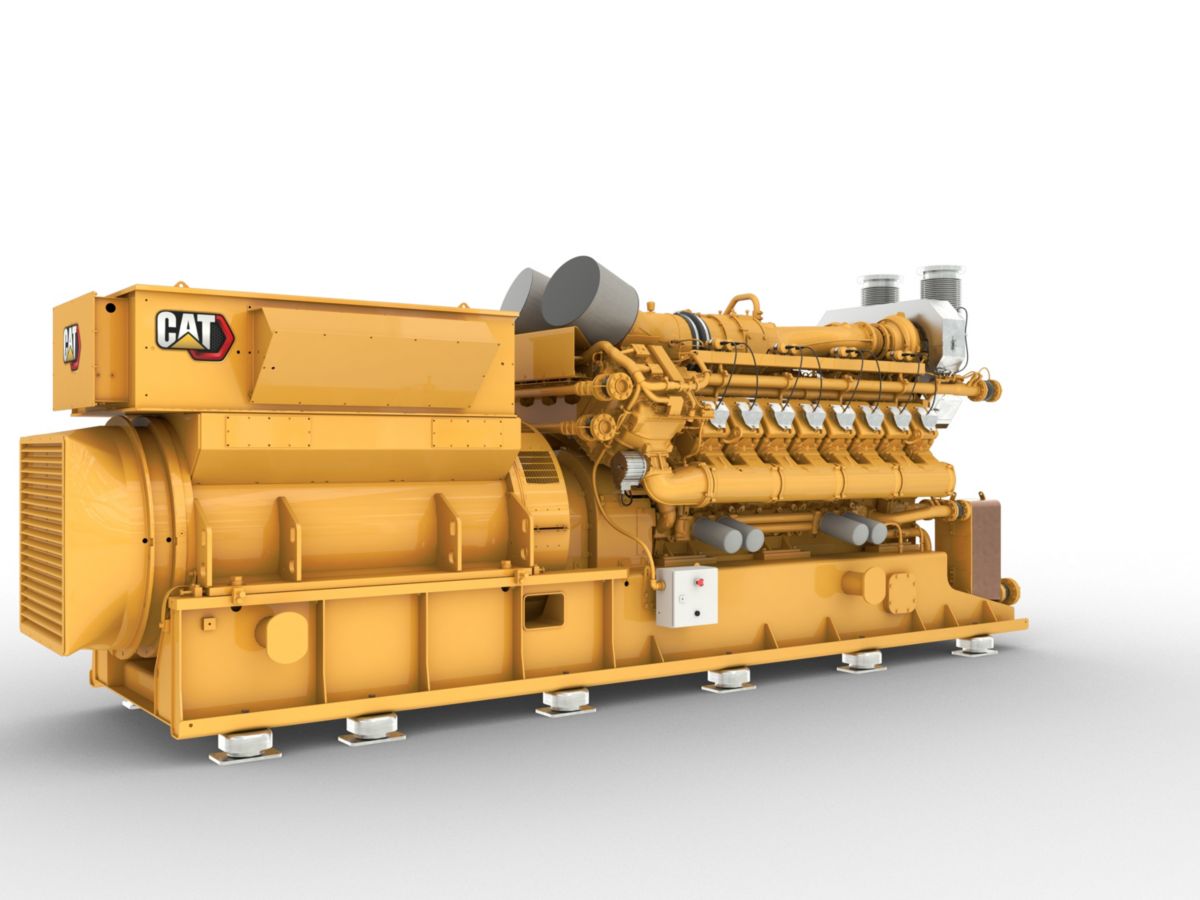

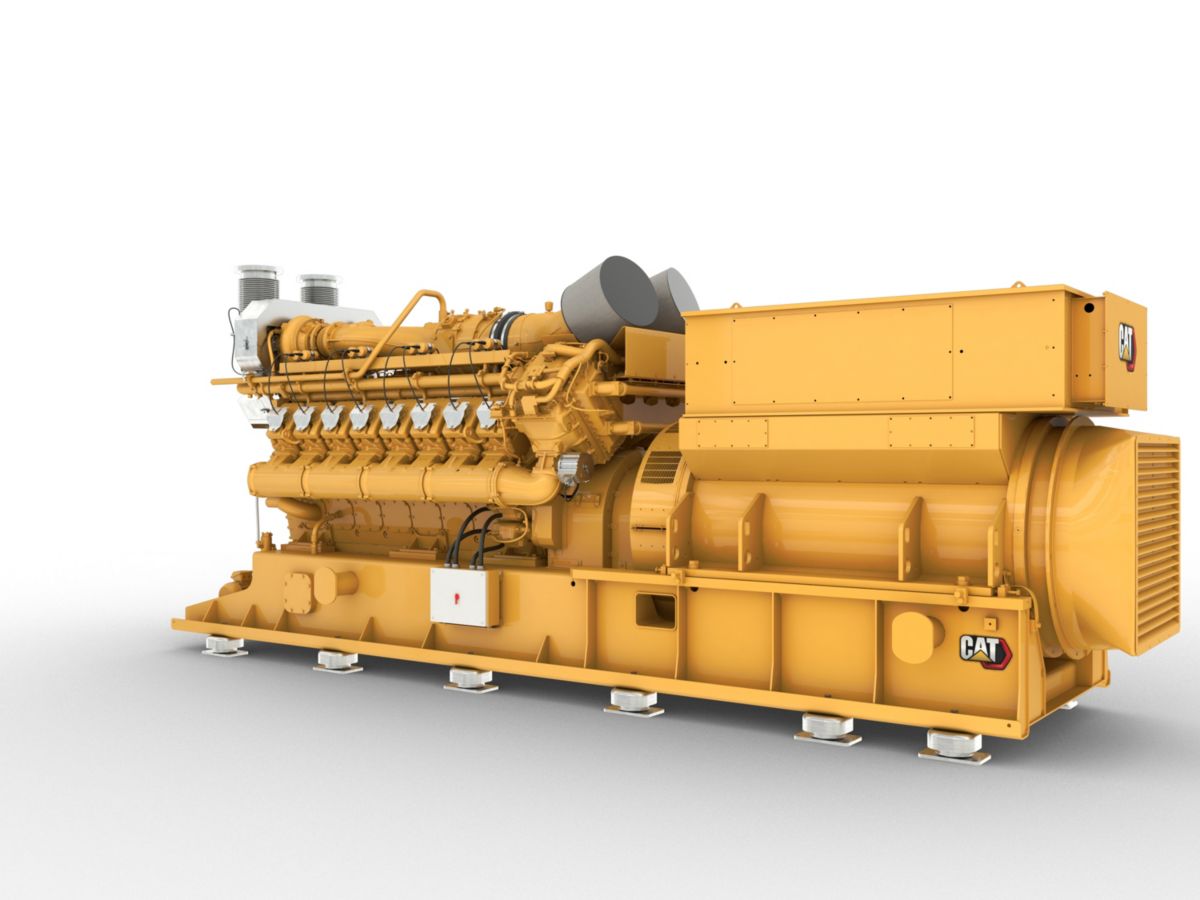

CG170B-16 Gas Generator Set

Request A Quote
US
Metric

Overview

Generator Set Specifications

Maximum Continuous Rating
1840 ekW @1.0pf
Fuel Type
Natural Gas, Biogas, Coal Gas
Maximum Electrical Efficiency
44.70%
Maximum Standby Rating
1840
Frequency
50 Hz
RPM
1500 rpm

Engine Specifications

Engine Model
CG170B-16
Aspiration
TA
Bore
6.70 in
170.00 mm
Stroke
7.70 in
195.00 mm

Generator Set Dimensions

Length
240.00 in
6100.00 mm
Width
67.00 in
1710.00 mm
Height
86.00 in
2190.00 mm
Dry Weight - Genset
38360.00 lb
17400.00 kg
Features

High Efficiency, Lower Operating Costs

  • Up to 44.7% electrical efficiency with Natural Gas
  • 43.6% electrical efficiency with biogas
  • Electrical output up to 1,840 kWel
  • Reduced vibration and stress on components

Compact Size, High Profitability

  • Compact design that delivers up to 18% more power output at the same size as its predecessor
  • Long maintenance intervals (up to 80,000 hours)
  • Available in different applications, such as natural gas, biogas, wellhead- and propane gas operation
  • Maximum flexibility through different engine variants

Optimized Lubrication Consumption

  • Consumes ~0.15g/kWh<\li>
  • Reduced lube oil temperature through better cooling performance<\li>
  • Savings of up to 3,000 liters of lube oil per year compared to comparable gensets<\li>
Standard Equipment
  • Air Inlet
    • Turbocharger with a water-cooled bearing case for all cylinder
    • One-element single-stage air cleaner with enclosure and sevice indicator
  • Control Panels
    • TPEM (Total Plant & Energy Management System)
  • Cooling
    • flange connections for JW inlet and outlet
    • Electrical jacket water and aftercooler coolant pump
    • Jacket water and SCAC thermostats
    • ANSI/DN customer flange connections for JW inlet and outlet
  • Exhaust
    • PEARL/Low resistence exhaust system
    • Exhaust waste gate for the CG170B-16
    • Closed crankcase ventilation system
  • Fuel system
    • Electronic fuel metering valve
    • Independently controlled cylinder monitoring and ignition system
    • Pre-chamber spark plugs
  • Generator
    • closed-coupled generator result in no torque transmission to the base frame
    • Winding temperature detectors
    • Busbar connections
    • 3-phase sensing and KVAR/PF control
    • grid code generator
    • Reactive droop
    • Anti-condensation space heater
  • Starting/Charging
    • 24V starting motors
    • Battery disconnect switch
  • General
    • Crankshaft vibration damper and guard
Optional Equipment
  • Cooling
    • CHP skid
