CG170 Gas Generator Set
US
Metric
Overview

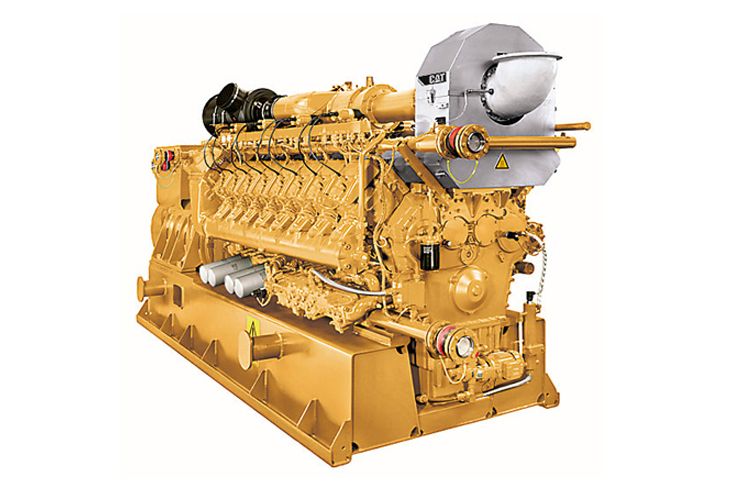

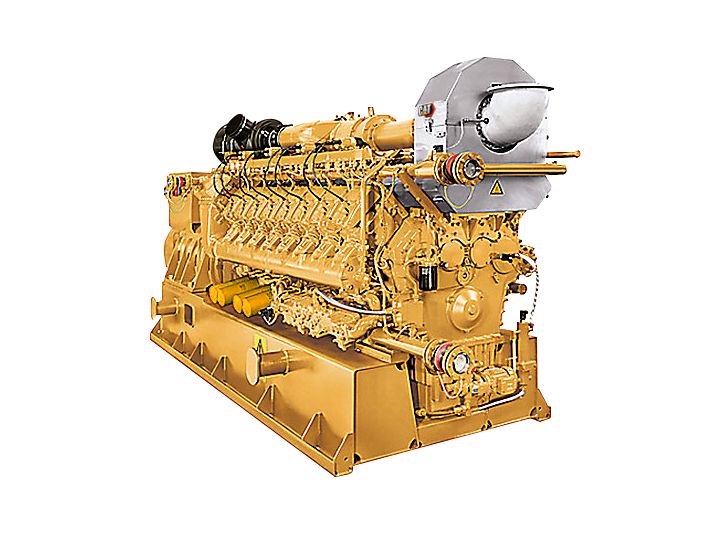

CG170 Gas Generator Set
Generator Set Specifications
Maximum Continuous Rating
1560 ekW @1.0pf
Fuel Type
Natural Gas, Biogas, Coal Gas
Gas Generator Sets Specification
Maximum Electrical Efficiency
43.3%
Maximum Standby Rating
-
Generator Set Specifications
Frequency
50 or 60 Hz
RPM
1500 or 1800 rpm
Engine Specification
Engine Model
CG170
Engine Specifications
Bore
6.70 in
170.00 mm
Stroke
7.70 in
195.00 mm
Displacement
4320.00 in³
70.80 l
Aspiration
TA
Generator Set Dimensions
Length
261.40 in
6640.00 mm
Width
70.00 in
1778.00 mm
Height
87.00 in
2210.00 mm
Dry Weight - Genset
32848.50 lb
14900.00 kg
Generator Set Specifications
Maximum Electrical Efficiency
43.30%
Gas Generator Sets Specification
Maximum Standby Rating
-
Engine Specifications
Engine Model
CG170-16
Aspiration
TA
Features
High Efficiency, Lower Operating Costs
- Miller cycle timing with combustion chamber and spark plug improvement help on saving up to 15% fuel gas per year
- CG170 (non-miller) is optimized for Island-Mode capability
- Gearbox helps limit wear and tear on engine components, lowering operating costs and increasing availability
Low installation, Building and Operating Costs
- Extended maintenance intervals thanks to sooth-free combustion and enlarged oil tank
- Low fuel consumption due to improved combustion chamber and pre-chamber spark-plugs
- Flexible fields of application also with fluctuating gas qualities due to Total Electronic Management (TEM)
- Optimized oil management
Optimized Lubrication Consumption
- Consumes up to 1900 liter less lube oil per year than comparable models<\li>
- Longer lubricant change and oil change intervals<\li>
Standard Equipment
- Air Inlet
- Turbocharger with a water-cooled bearing case for all cylinder
- One-element single-stage air cleaner with enclosure and sevice indicator
- Control Panels
- TEM (Total Electronic Management)
- Cooling
- Jacket water and SCAC thermostats
- Electrical jacket water and aftercooler coolant pump
- flange connections for JW inlet and outlet
- Cat flanges on SCAC circuit
- Exhaust
- PEARL/Low resistence exhaust system
- Closed crankcase ventilation system
- Fuel system
- Independently controlled cylinder monitoring and ignition system
- Pre-chamber spark plugs
- Electronic fuel metering valve
- Generator
- Busbar connections
- Anti-condensation space heater
- closed-coupled generator result in no torque transmission to the base frame
- Winding temperature detectors
- Reactive droop
- 3-phase sensing and KVAR/PF control
- grid code generator
- Starting/Charging
- 24V starting motors
- Battery disconnect switch
- General
- Crankshaft vibration damper and guard
Optional Equipment
- Air Inlet
- Mounting stand
- Air cleaner with precleaner
- Cooling
- CHP skid
