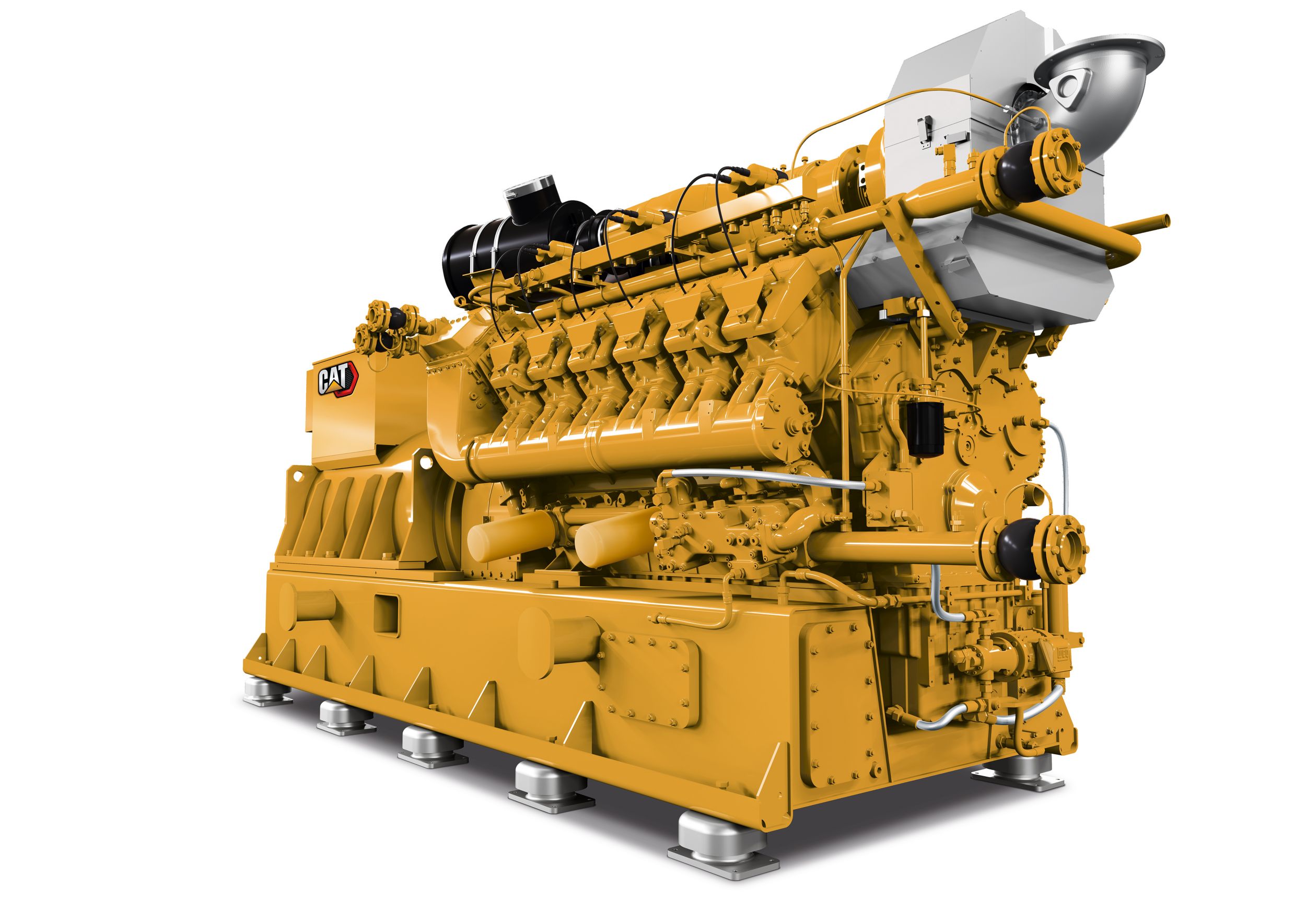

CG170-12 Gas Generator Set
US
Metric
Overview
Generator Set Specifications
Maximum Continuous Rating
1200 ekW @1.0pf
Fuel Type
Natural Gas, Biogas, Coal Gas
Gas Generator Sets Specification
Maximum Electrical Efficiency
43.4%
Generator Set Specifications
Frequency
50 or 60 Hz
RPM
1500 rpm
Engine Specification
Engine Model
CG170-12
Engine Specifications
Bore
6.70 in
170.00 mm
Stroke
7.70 in
195.00 mm
Displacement
3240.00 in³
53.10 l
Aspiration
TA
Generator Set Dimensions
Length
235.00 in
5970.00 mm
Width
70.00 in
1778.00 mm
Height
87.00 in
2210.00 mm
Dry Weight - Genset
28659.80 lb
13000.00 kg
Generator Set Specifications
Maximum Electrical Efficiency
43.40%
Engine Specifications
Engine Model
CG170-12
Aspiration
TA
Features
High Efficiency, Lower Operating Costs
- Miller cycle timing with combustion chamber and spark plug improvement help on saving up to 15% fuel gas per year
- CG170 (non-miller) is optimized for Island-Mode capability
- Gearbox helps limit wear and tear on engine components, lowering operating costs and increasing availability
Low installation, Building and Operating Costs
- Extended maintenance intervals up to 64,000 Oh
- Low fuel consumption due to improved combustion chamber and pre-chamber spark-plugs
- Flexible fields of application also with fluctuating gas qualities due to Total Electronic Management (TEM)
- Optimized oil management
Optimized Lubrication Consumption
- Consumes up to 1900 liter less lube oil per year than comparable models<\li>
- Longer lubricant change and oil change intervals<\li>
Standard Equipment
- Air Inlet
- Turbocharger with a water-cooled bearing case for all cylinder
- One-element single-stage air cleaner with enclosure and sevice indicator
- Control Panels
- TEM (Total Electronic Management)
- Cooling
- Electrical jacket water and aftercooler coolant pump
- Jacket water and SCAC thermostats
- flange connections for JW inlet and outlet
- Exhaust
- PEARL/Low resistence exhaust system
- Closed crankcase ventilation system
- Exhaust waste gate for the CG170-12
- Fuel system
- Electronic fuel metering valve
- Independently controlled cylinder monitoring and ignition system
- Pre-chamber spark plugs
- Generator
- Winding temperature detectors
- Reactive droop
- 3-phase sensing and KVAR/PF control
- Anti-condensation space heater
- closed-coupled generator result in no torque transmission to the base frame
- Busbar connections
- grid code generator
- Starting/Charging
- 24V starting motors
- Battery disconnect switch
- General
- Crankshaft vibration damper and guard
Optional Equipment
- Cooling
- CHP skid
