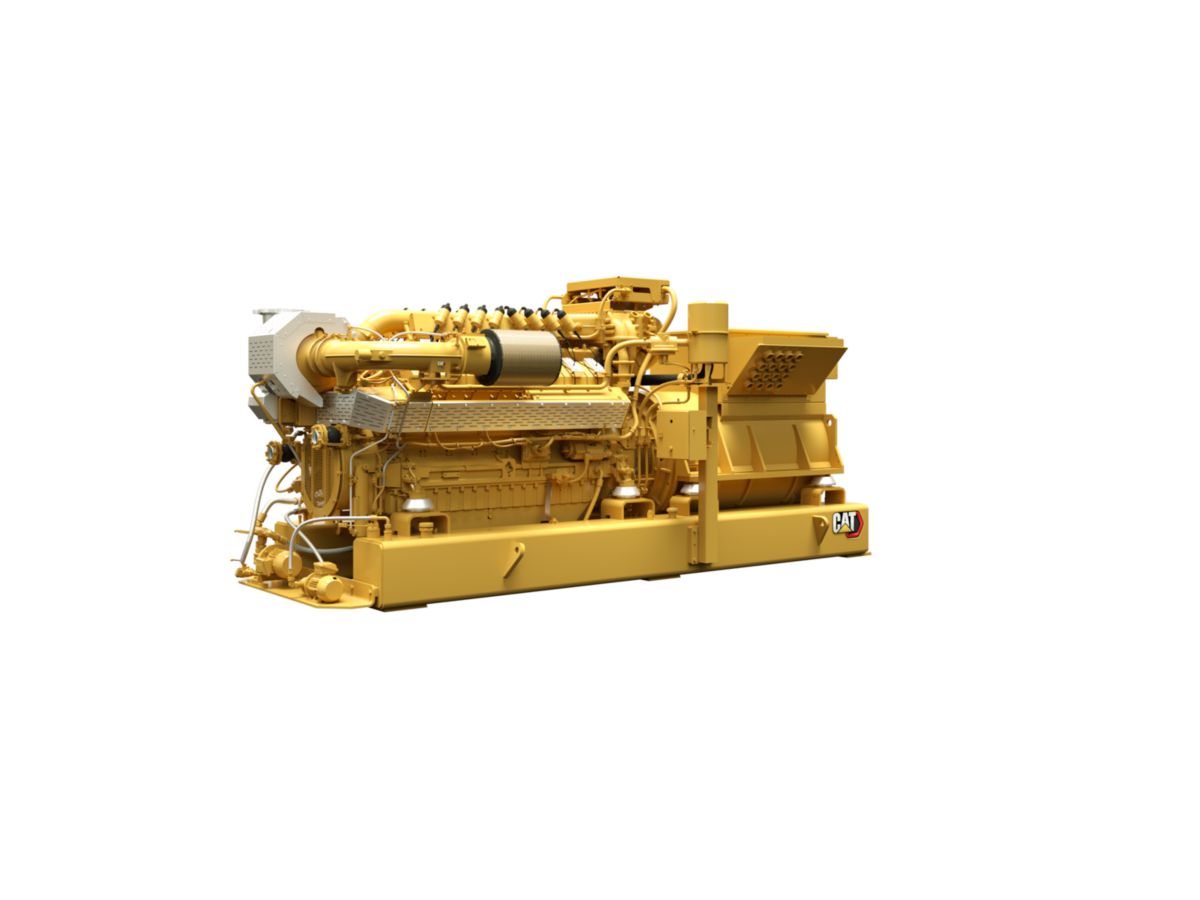

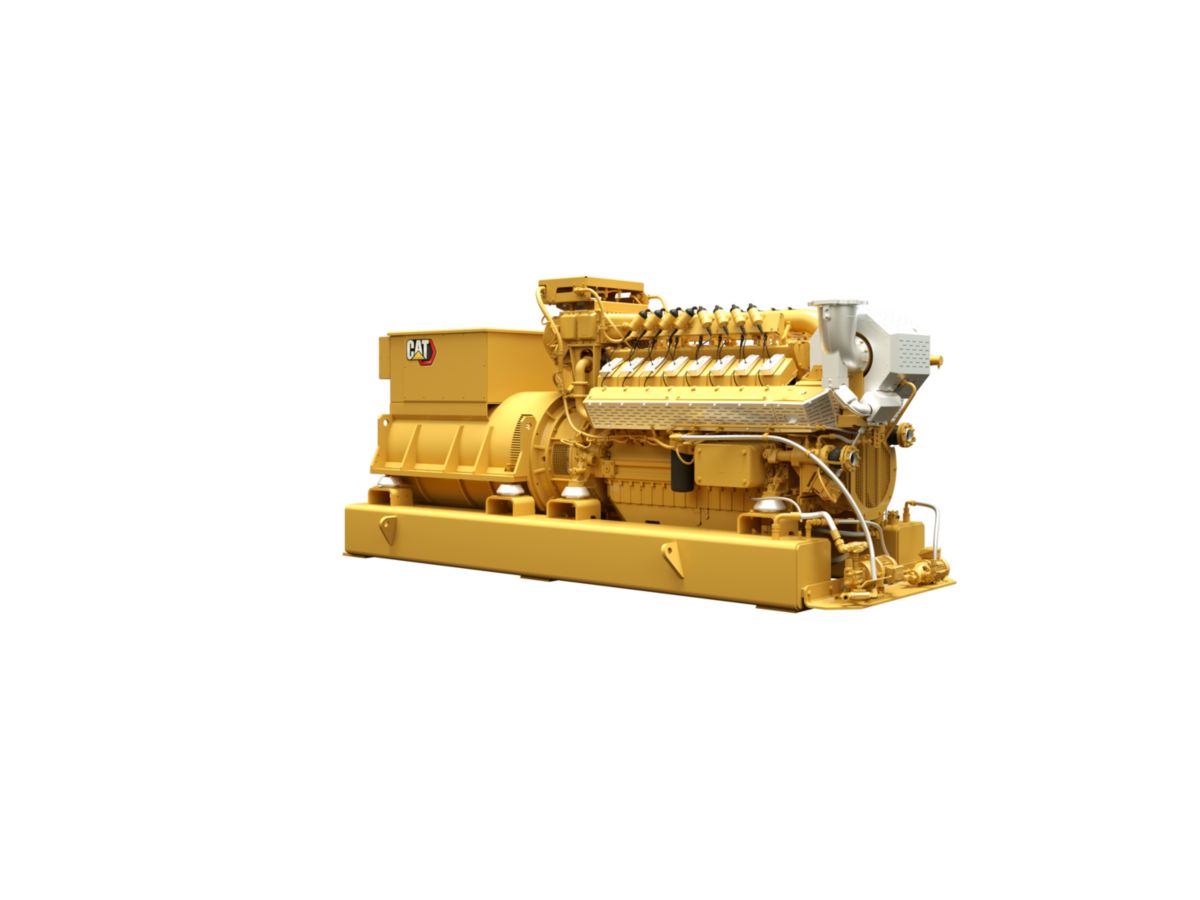

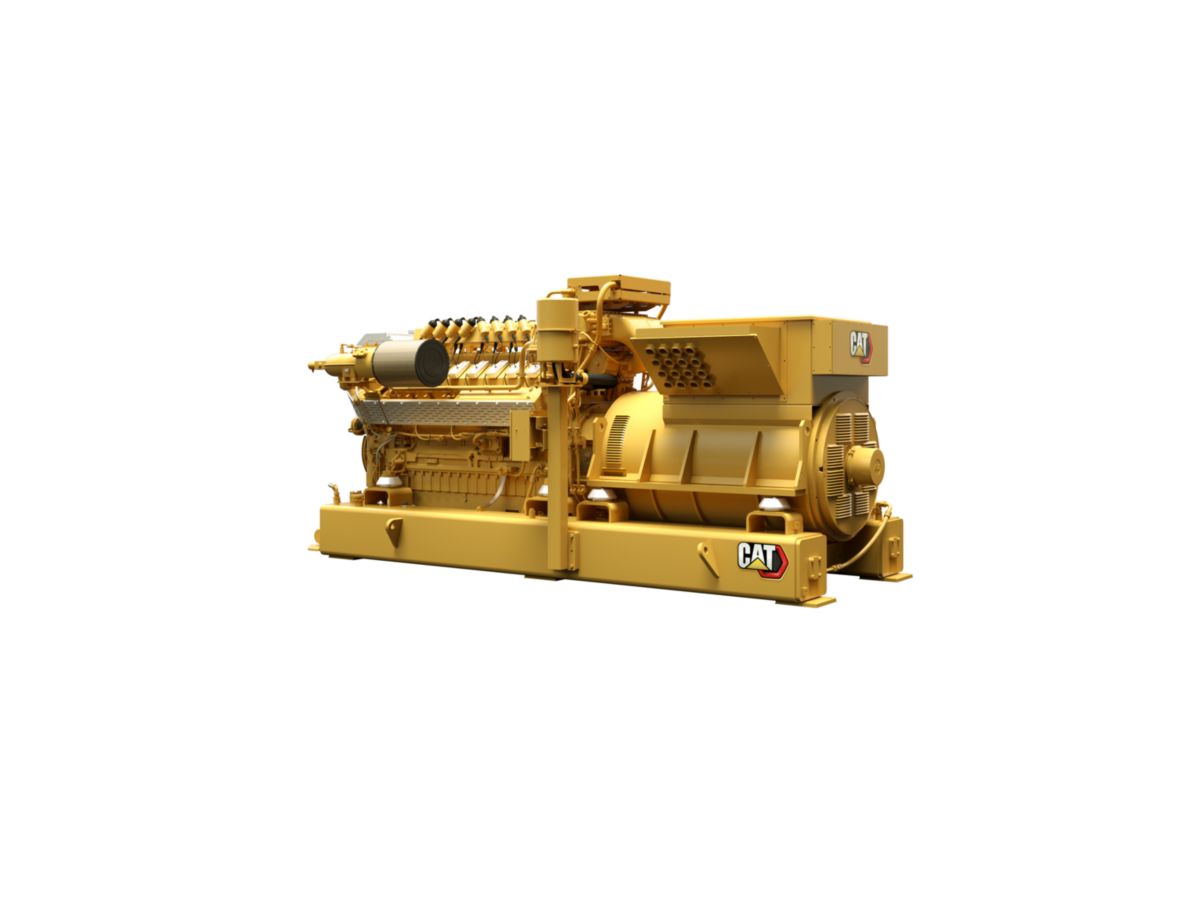

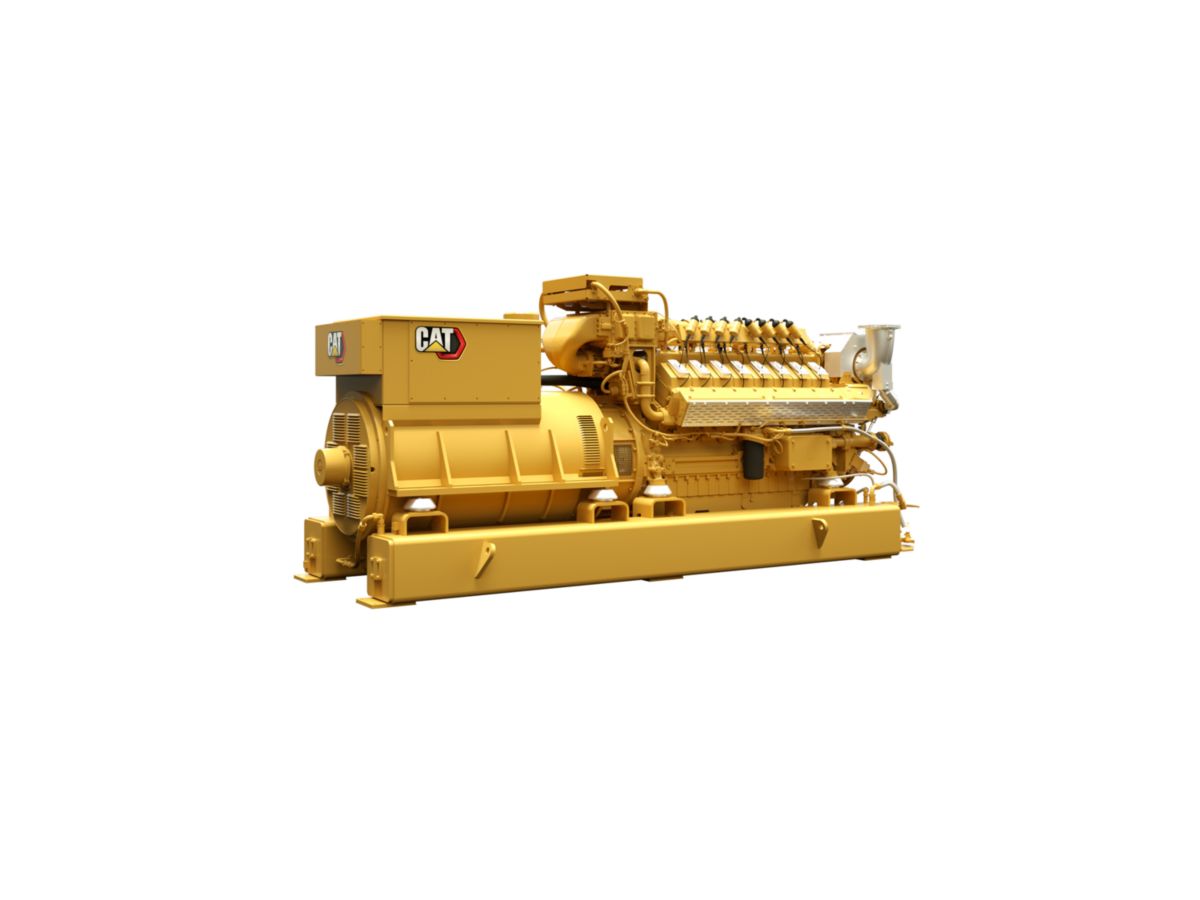

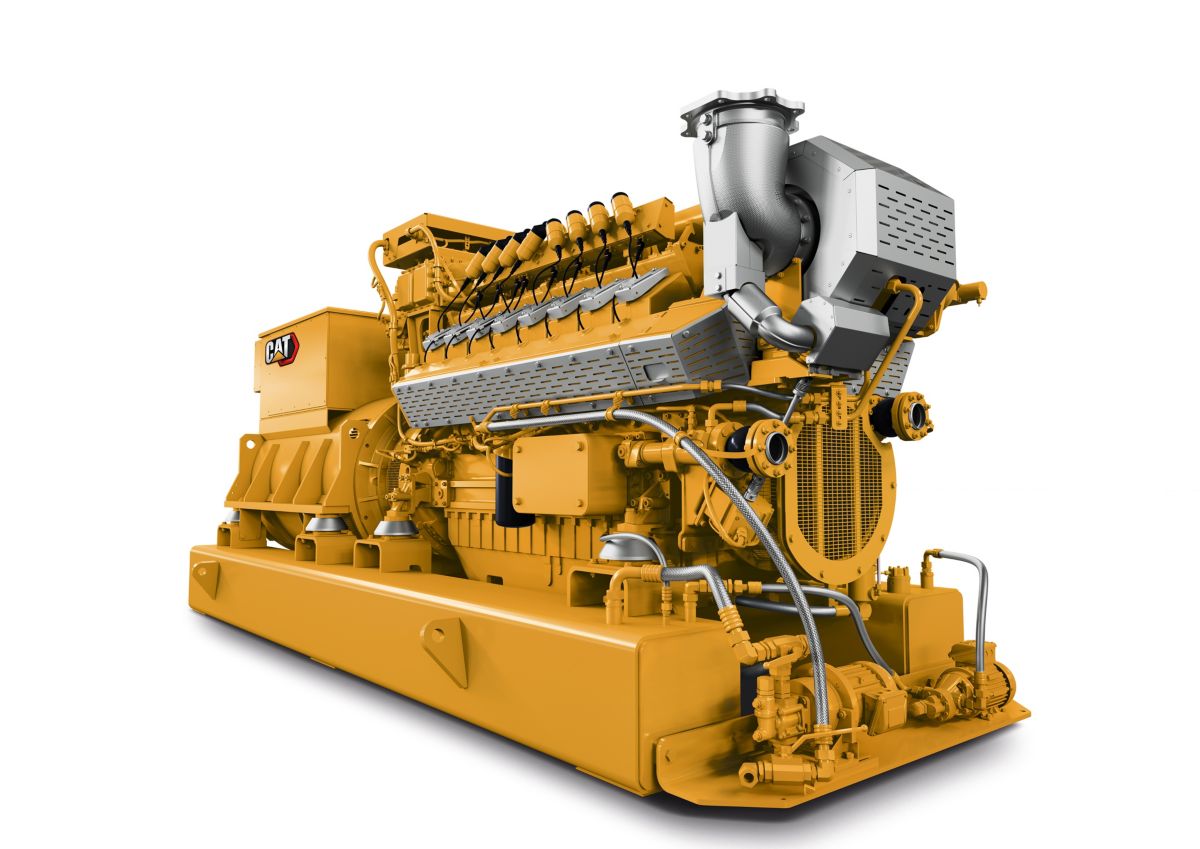

Gas Generator CG132B-16
US
Metric
Overview
The Cat CG132B family of gas engines are perfectly tailored to the challenges of the power plant in an age of global value chains.<br>
<br>
Highly efficient with low operating and installation costs and lubricant consumption, the Cat CG132B gas generator set is available with outputs from 400kW to 800kW and comes with the Total Plant and Energy Management (TPEM) system.
<br>
Highly efficient with low operating and installation costs and lubricant consumption, the Cat CG132B gas generator set is available with outputs from 400kW to 800kW and comes with the Total Plant and Energy Management (TPEM) system.
Generator Set Specifications
Maximum Continuous Rating
800 kW @1.0pf
Fuel Type
Natural Gas, Biogas
Maximum Electrical Efficiency
43.5% / 42.6%
Maximum Standby Rating
800 kW
Frequency
50 / 60 Hz
RPM
1500 / 1800 rpm
Engine Specifications
Engine Model
CG132
Displacement
2135.80 in³
35.00 l
Aspiration
TA
Bore
5.20 in
132.00 mm
Stroke
6.30 in
160.00 mm
Generator Set Dimensions
Length
165.00 in
4200.00 mm
Width
70.00 in
1780.00 mm
Height
85.00 in
2150.00 mm
Dry Weight - Genset
17691.00 lb
8070.00 kg
Features
Lower Operating Costs
Smaller footprint
Cat Total Electronic Management System
Flexible Fuel Usage
Standard Equipment
- Air Inlet
- Turbocharger with a water-cooled bearing case for all cylinder
- One-element single-stage air cleaner with enclosure and sevice indicator
- Control Panels
- TPEM (Total Plant & Energy Management System)
- Cooling
- Flange connections for JW inlet and outlet
- Jacket water and SCAC thermostats
- Electrical jacket water and aftercooler coolant pump
- flange connections for JW inlet and outlet
- ANSI/DN customer flange connections for JW inlet and outlet
- Cat flanges on SCAC circuit
- Exhaust
- Exhaust waste gate for the CG132B-16
- Closed crankcase ventilation system
- PEARL/Low resistence exhaust system
- Fuel system
- Electronic fuel metering valve
- Independently controlled cylinder monitoring and ignition system
- Pre-chamber spark plugs
- Generator
- grid code generator
- Reactive droop
- closed-coupled generator result in no torque transmission to the base frame
- Busbar connections
- Anti-condensation space heater
- 3-phase sensing and KVAR/PF control
- Winding temperature detectors
- Starting/Charging
- 24V starting motors
- Battery disconnect switch
- General
- Crankshaft vibration damper and guard
Optional Equipment
- Air Inlet
- Air cleaner with precleaner
- Mounting stand
- Cooling
- CHP skid
