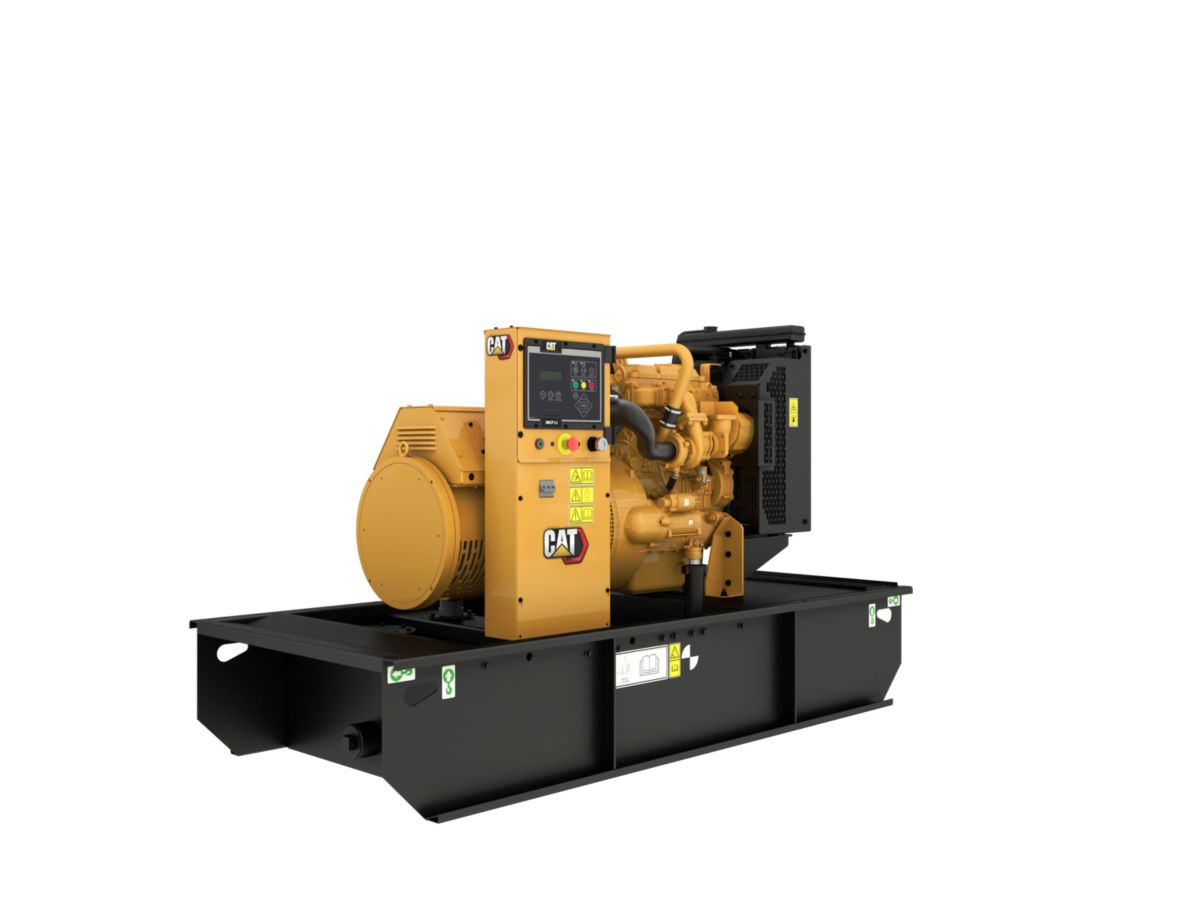

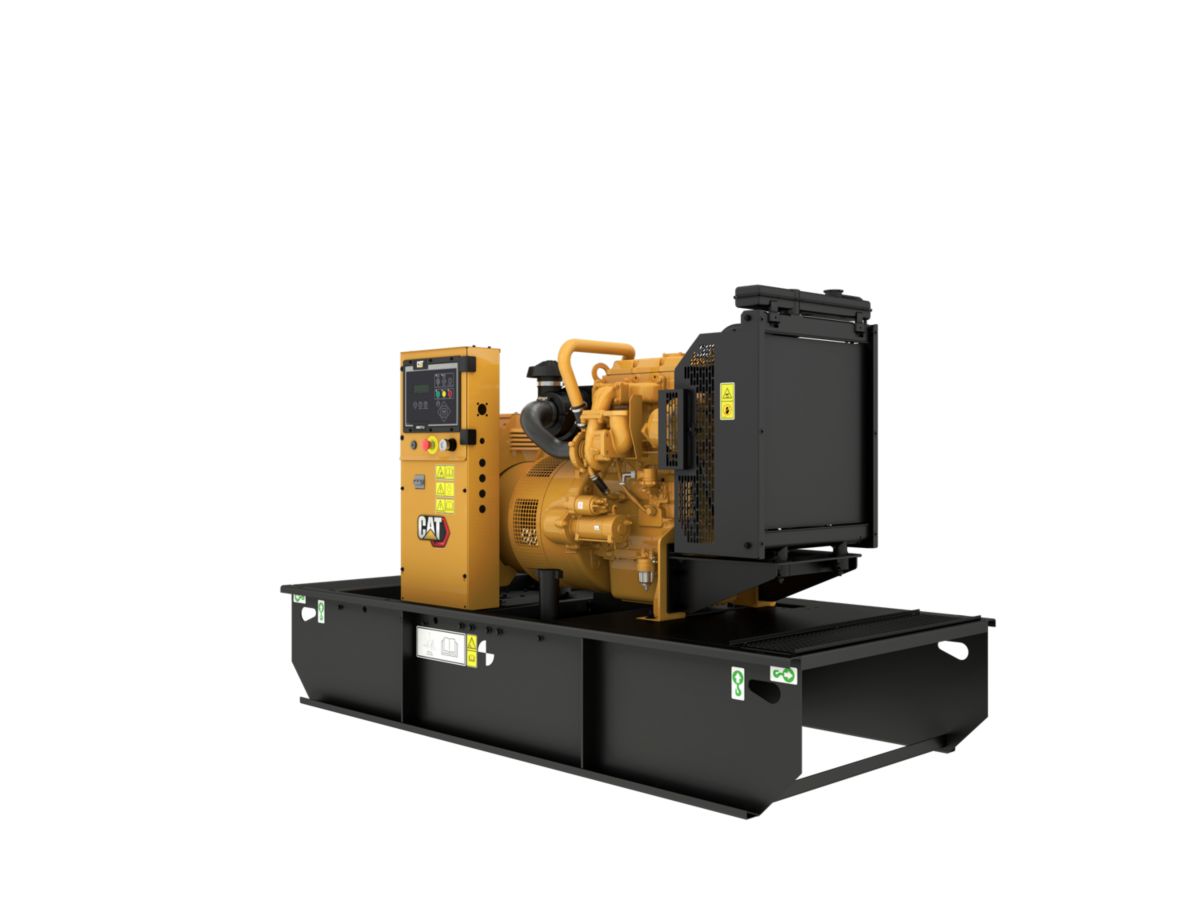

DE75AE0 (50 Hz) Generator Set
US
Metric
Overview
Caterpillar is leading the power generation marketplace with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.
Generator Set Specifications
Minimum Rating
60.0 kVA
Maximum Rating
75.0 kVA
Emissions/Fuel Strategy
Non-Certified Emissions
Voltage
220 to 380 Volts
Frequency
50 Hz
Speed
1500 rpm
Duty Cycle
Standby, Prime
Engine Specifications
Engine Model
Cat® C3.3
Bore
4.10 in
105.00 mm
Stroke
5.00 in
127.00 mm
Displacement
201.40 in³
3.30 l
Compression Ratio
17.25:1
Aspiration
Turbocharged
Fuel System
Common Rail
Governor Type
Mechanical
Generator Set Dimensions
Length - Maximum
66.10 in
1680.00 mm
Width - Maximum
760.00 mm
29.90 in
Height - Maximum
52.50 in
1333.00 mm
Dry Weight - Genset (maximum)
1788.00 lb
811.00 kg
Features
Cat Generator Set Package
- Cat generator set packages have been fully prototype tested
- Accepts 100% block load in one step and meets NFPA 110 loading requirements
- Conform to ISO 8528-3 steady state and transient response requirements
Cat Diesel Engine
- Reliable, rugged, durable design
- Field-proven in thousands of applications worldwide
- Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight
GTA Frame Alternator
- Superior motor starting capability minimizes need for oversizing alternator
- Designed to match performance and output characteristics of Cat diesel engines
- Robust Class H insulation
EMCP Control Panel
- User-friendly interface and navigation
- Scalable system to meet a wide range of installation requirement
- Expansion modules and site-specific programming for specific customer requirements
Cooling System
- Designed to operate in standard ambient temperatures up to 55°C (131°F)
- Contact your Cat Dealer for specific ambient and altitude capabilities
Certifications
Fully prototype tested with certified torsional vibration analysis available
One Safe Source
- Components used in the generator set are selected based on seamless design integration to provide the optimum performance
- The generator set is fully assembled at a Caterpillar facility following our quality guidelines
- Each generator set package is tested before leaving the Caterpillar facility
- Cat product support, including dealer service, parts and warranty covers the entire Cat power system
World Wide Product Support
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
Standard Equipment
- Engine
- C3.3, Inline 3 cylinder, 4 stroke diesel
- Control panel
- EMCP 4.1
- Governing system
- Mechanical governor
- Alternator
- GTA Frame standard alternator
- Fuel Storage
- Single wall 8 hour tank
- Enclosure
- Modular easy access acoustic enclosure
- Air, Cooling & Exhaust
- Enclosure silencer
- General
- Engine and alternator pre-paint, Caterpillar yellow
