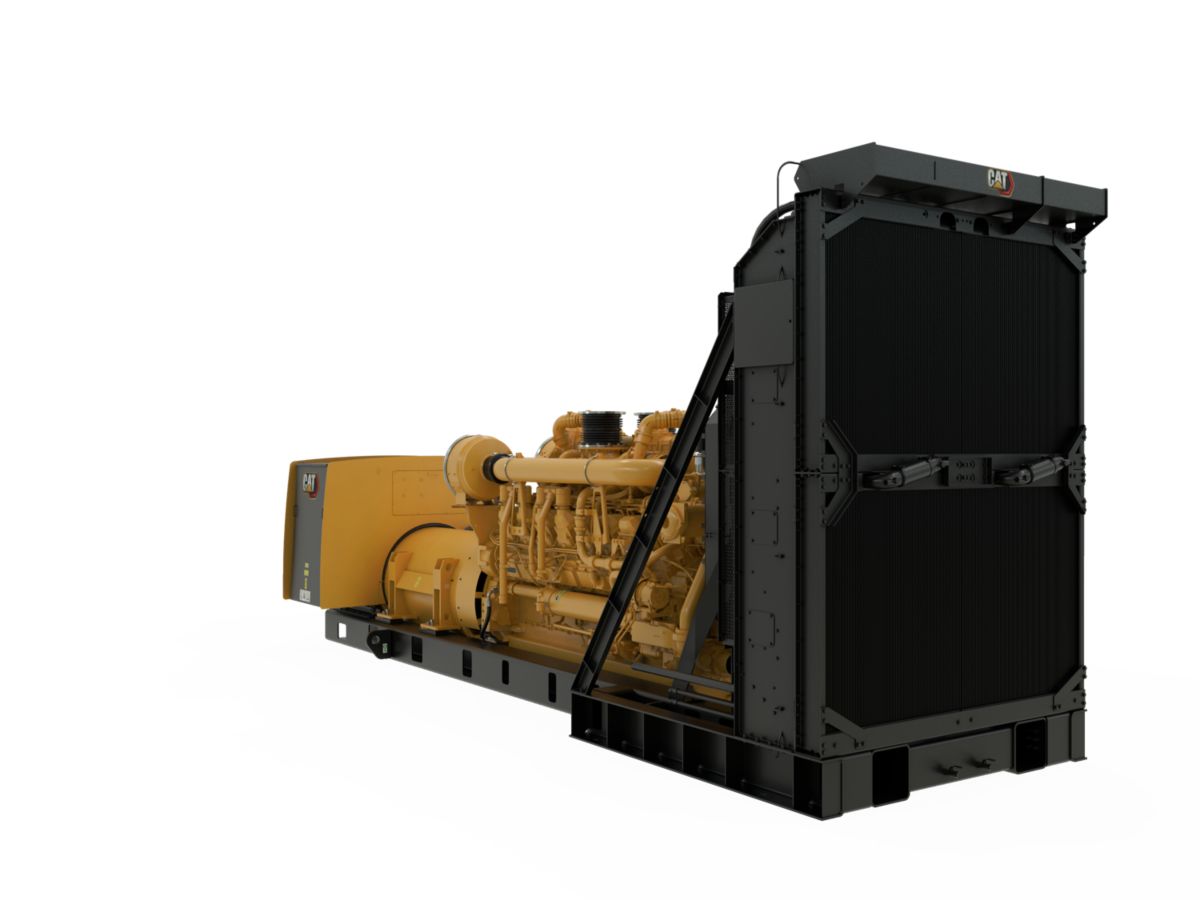

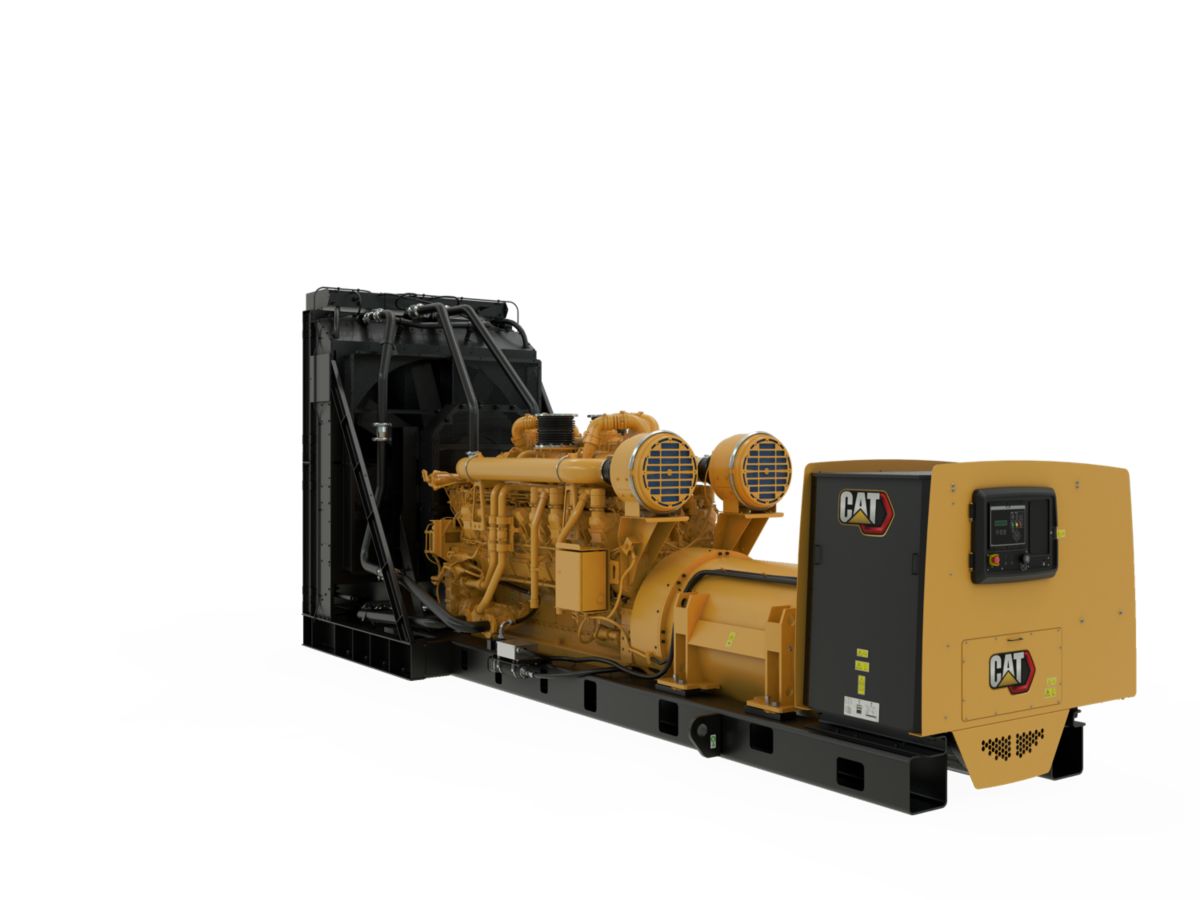

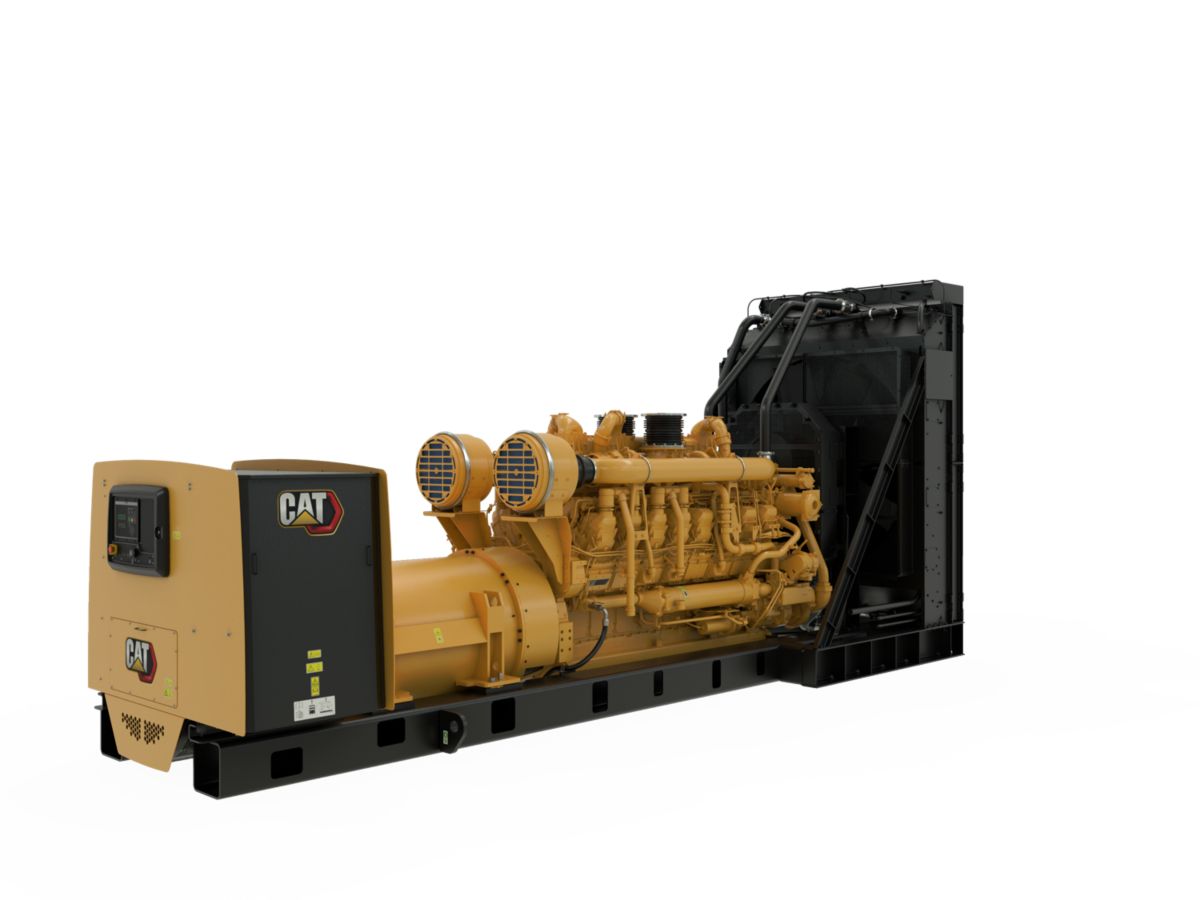

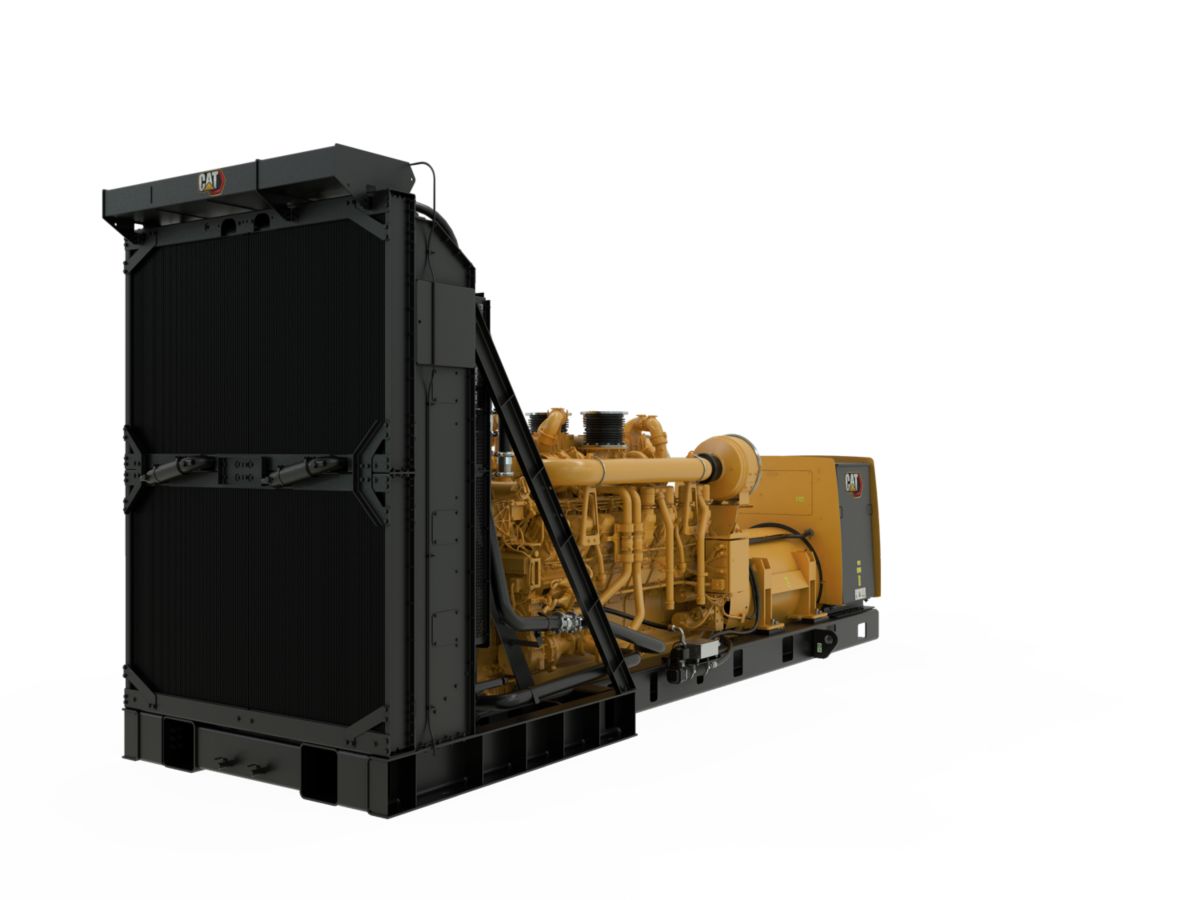

3516E Low Voltage Generator Set
US
Metric
Overview
Caterpillar is leading the power generation marketplace with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.
Generator Set Specifications
Minimum Rating
2750 kVA
Maximum Rating
3000 kVA (3100 kVA without fan)
Emissions/Fuel Strategy
Low Fuel Consumption
Voltage
380 to 11000 volts
Frequency
50 Hz
Speed
1500 rpm
Duty Cycle
Standby, Mission Critical, Prime
Engine Specifications
Engine Model
3516E, SCAC, V-16, 4-Stroke, Water-Cooled Diesel
Bore
6.69 in
170.00 mm
Stroke
8.46 in
215.00 mm
Displacement
4766.00 in
78.10 l
Compression Ratio
14:01
Aspiration
TA
Fuel System
Electronic unit injection
Governor Type
Adem™5
Generator Set Dimensions
Length - Maximum
296.80 in
7538.00 mm
Width - Maximum
87.20 in
2216.00 mm
Height - Maximum
133.50 in
3391.00 mm
Dry Weight - Genset (maximum)
43541.00 lb
19750.00 kg
Features
Cat Generator Set Package
Cat Diesel Engine
SR5 Alternator
EMCP 4 Control Panel
Cooling System
Certifications
One Safe Source
World Wide Product Support
Standard Equipment
- Air Inlet System
- Air cleaner
- Single element canister type with service indicator
- Control Panel
- Environmental sealed front face
- Warning/shutdown with common LED indication of shutdowns for:
- Overspeed
- RPM
- Generator phase sequence
- Emergency stop pushbutton
- Digital indication for:
- Text alarm / event descriptions
- 2 Programmable digital outputs
- Reverse reactive power (kVAr) (32RV)
- Reverse power (kW) (32)
- Failure to start (overcrank)
- Panel lights
- Speed adjust
- Oil pressure (psi, kPa or bar)
- Low coolant level
- Generator mounted - rear facing
- Over / under frequency (81 o/u)
- Lamp test
- True RMS AC metering, 3-phase, +/-2% accuracy
- Low coolant temperature
- Power Factor (per phase & average)
- Frequency (Hz)
- Overcurrent (50/51)
- High coolant temperature
- DC volts
- 6 Programmable digital inputs
- Coolant temperature
- 24 Volt DC operation
- Amps (per phase & average)
- Emergency stop
- Alarm acknowledge
- Programmable protective relaying functions:
- 2 Programmable relay outputs (Form C)
- EMCP 4.2B
- Serial annunciator module data link
- Controls:
- kW-hr (total)
- kW (per phase, average & percent)
- Engine cool-down timer
- Operating hours
- EMCP 4 Genset Controller
- Volts (L-L & L-N)
- Engine cycle crank
- Communications:
- kVAr (per phase, average & percent)
- EMCP4.2B controller includes:
- Customer data link (Modbus RTU)
- Over / under voltage (27/59)
- Low oil pressure
- kVA (per phase, average & percent)
- kVAr-hr (total)
- 4 Programmable relay outputs (Form A)
- Accessory module data link
- Exhaust
- Exhaust flange outlet
- Fuel
- Primary fuel filter with integral water separator
- Generator
- IP23 Protection
- Matched to the performance and output characteristics of Cat engines
- Power Termination
- Busbar
- Starting/Charging
- Heavy-duty starting system
- Charging alternator
- Cooling System
- Caterpillar Extended Life Coolant
- Radiator fan and fan drive
- Fan and belt guards
- JWAC
- Coolant drain line with valve
- Coolant level sensors
- Cooling
- Package mounted radiator
- Exhaust System
- Dry exhaust manifold
- Flanged faced outlet(s)
- Fuel System
- Secondary fuel filters
- Fuel priming pump
- Fuel cooler; not included with packages without radiator
- Flexible fuel lines - shipped loose
- Generators and Attachments
- Internal excitation
- 6 Lead
- Busbar connections, top center mounted, top cable entry
- IEC standard hole pattern
- Random wound
- 3 Phase brushless, salient pole
- Winding temperature detectors
- NEMA Class H insulation, Class H temperature rise at 40C ambient (125C prime / 150C standby).
- Generator set packages include Caterpillar's Digital Voltage Regulator (CDVR). CDVR includes reactive droop capability, 3-phase voltage sensing, KVAR/PF modes, RFI suppression, min/max exciter
- Governing System
- ADEM III
- Literature
- English
- Lube System
- Lubricating oil
- Oil filter, filler and dipstick
- Fumes disposal
- Oil drain lines and valve
- Gear type lube oil pump
- Integral lube oil cooler
- Mounting System
- Rubber anti-vibration mounts (shipped loose)
- Rails - engine / generator / radiator mounting
- Starting / Charging System
- Battery and battery rack w/cables
- 24 Volt electric starting motor
- Battery disconnect switch
- General
- Right hand servicing
- Paint: Caterpillar yellow with high gloss black rails & radiator
- Flywheel and flywheel housing-SAE No. 00
- SAE standard rotation
Optional Equipment
- Air Inlet System
- Air inlet protection
- Heavy duty air cleaners
- Remote air inlet adapters
- Dual element air cleaners
- Circuit Breakers
- Cable entry options
- Control packaging for enclosures
- Optional busbar power connections
- EMAX breakers
- Load take off; IEC standard hole
- Center posts busbars
- Trip Units
- Power Termination
- Circuit breakers, IEC compliant
- Control Panels
- External box clips
- Local and remote monitoring
- Busbar connections
- Governors
- Generator temperature monitoring
- Auxiliary box
- Voltage raise / lower switch
- EMCP 4.3, EMCP 4.4
- EMAX breaker connections
- Language options
- Remote speed adjust
- Annunciator modules
- Customer interface options
- Vandal proof panel door
- Cooling System
- Optional Serpentine radiators
- Water level switch gauges
- Heat exchangers
- Radiator duct flanges
- European Certifications
- EU declaration of conformity
- Exhaust System
- Mufflers
- Through wall installation kit
- Flexible fittings
- Muffler mounting kits
- Fuel System
- Fuel coolers
- Primary fuel filter
- Generators and attachments
- 3 Phase, Random wound, Internal excitation
- Internal excitation
- Random wound
- Pitch: 0.6667
- Optional generators
- Number of leads: 6
- 3 Phase, 380 / 400 / 415 / 3300 / 6600 / 10000 / 10500 / 11000 volt
- Instrumentation
- Thermocouples
- Pyrometers and thermocouples
- Lube System
- Manual prelube sump pumps
- Oil level regulator
- Electric prelube pumps
- Mounting System
- Spring type vibration isolators
- IBC vibration isolators
- Protection System
- Explosion relief valves
- Special Tests / Reports
- PGS test report @ 0.8 power factor
- CSA test and certification
- Neutral ground certificate
- PGS test report @ 1.0 power factor
- IBC seismic certificate
- Starting / Charging System
- Jacket water heaters
- ETHER starting aids
- Dual 24 volt electric starting motors
- 24 Volt battery sets - Dry
- Charging alternators - 50 Amp
- 10 and 20 amp battery chargers
- General
- Engine barring group
